Aggregate reports

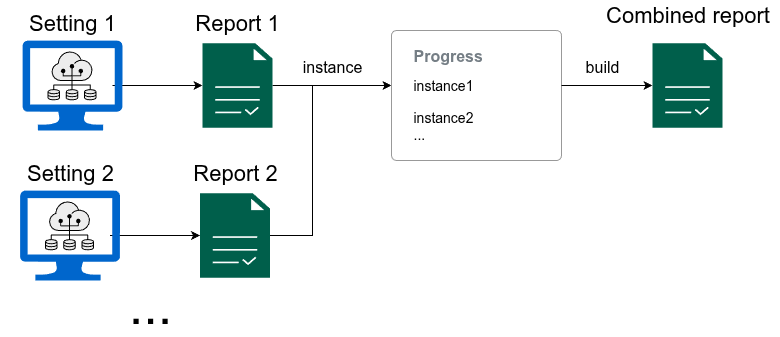

A mechanism provided by FairBench to gather fairness reports and aggregate them into one larger assessment is the Progress class. This implements a builder pattern in which new reports are registered sequentially, and at any point an amalgamated report can be extracted. The same pattern can be used for reports that show the evolution of datasets and algorithms over time (both tracked progress and reports can be serialized to and from Json, which allows for persistence if needed).

Gathering reports together allows for joint exploration, visualization, and even reductions like obtaining the average and standard deviation of all values across experiment settings. The builder pattern and these options are covered in this document.

Gather instances

Below is how to add report instances to a Progress builder. The example generates different reports for different binary classification decision thresholds, and a report is generated for each threshold. The instance method is then used to register reports so that one super-report can be built with the build method. As a first step, the example visualizes the maximum measure differences between demographic group. Like normal, this specialization preserves the structural organization of the report, namely that first the repost is split per threshold and only afterwards per measure.

import fairbench as fb
import numpy as np

x, y, yhat = fb.bench.tabular.bank(predict="probabilities")
sensitive = fb.Dimensions(fb.categories @ x["marital"])

comparison = fb.Progress("thresholds")
for threshold in np.arange(0.1, 0.91, 0.1):
    report = fb.reports.pairwise(sensitive=sensitive, predictions=yhat>threshold, labels=y)
    comparison.instance(f"Threshold {threshold:.1f}", report)
comparison = comparison.build()
comparison.maxdiff.show(env=fb.export.Html)

Transposing the view

A particularly handy transformation for reports consistes of applying .explain on them, which exchanges the top two organization layers. Applying it below lets us to split the maximum differences across all reports across measures.

comparison.maxdiff.explain.show(env=fb.export.Html, depth=0)

Persistence

Serialization and deserialization allow you to maintain fairness report or collections of reports in Progress instances across multiple application runs. For example this features can help investigate algorithm or dataset evolution over time by retaining previous reports. To perform serialization, use the status property of a Progress object to peek at its current build outcome without clearing gathered instances. Then perform the serialization by converting the status into dictionaries and lists and using any framework. Here is an example where json is used to perform the serialization:

import json

dict_form = comparison.status.to_dict()
with open("comparison.json", "w") as file:
    json.dump(serialized, file)

Deserializing from the file entails the inverse procedure, in which a Value holding the report outcome is deserialized and then passed to the Progress constructor to continue building.

with open("comparison.json", "r") as file:
    dict_form = json.load(file)

status = fb.core.Value.from_dict(dict_form)
comparison = fb.Progress(status)

Applying reductions

FairBench already provides reduction mechanisms to aggregate fairness measures across groups or subgroups. These can also be applied as filters, granted that they encounter the same units across all dimensions when attempting a reduction (this check is enforced for sanity).

mean_comparison = comparison.status.filter(fb.reduction.mean)
mean_comparison.show(fb.export.ConsoleTable)
